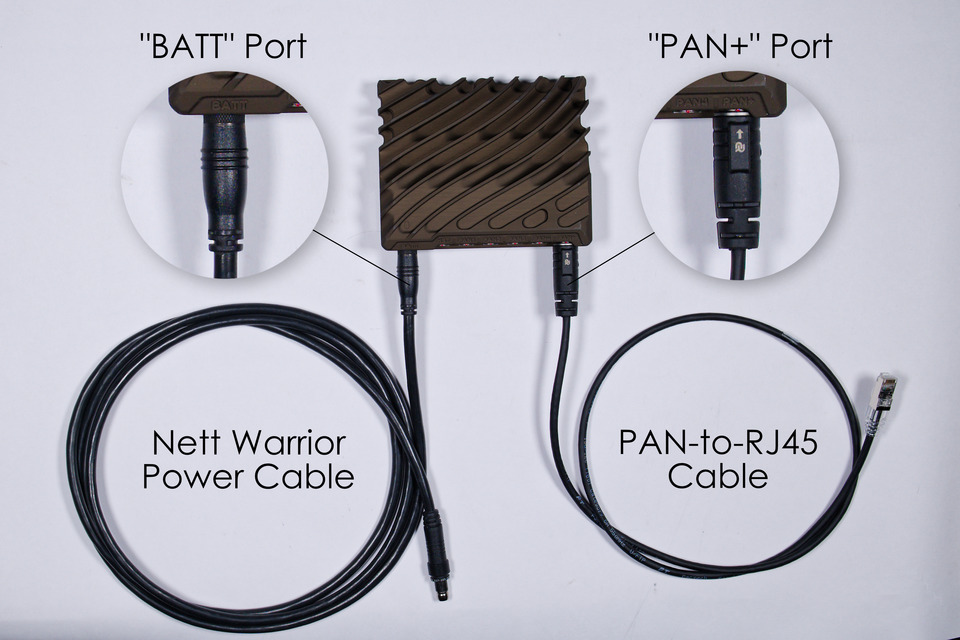

  • PAN+ Ethernet Connection
  • HOST/HST USB Compatible Cables

Overview

To create a networking connection for the first time using already flashed jetpack image on the Cardshark, two networking connections are available:

• the PAN+ port using a compatible PAN+ cable
• the HOST/HST port using a PAN-to-USB cable.

Note:

The PAN+ port uses a typical Ethernet connection while the HOST/HST port relies on USB Gadget Mode. The default IP addresses for each of these connectivity options differ slightly.

• PAN+ Port IP: 192.168.88.1
• HOST/HST Port IP: 192.168.55.1

Compatible CRL Cardshark Networking Cables

PAN+ Ethernet Compatible Cables

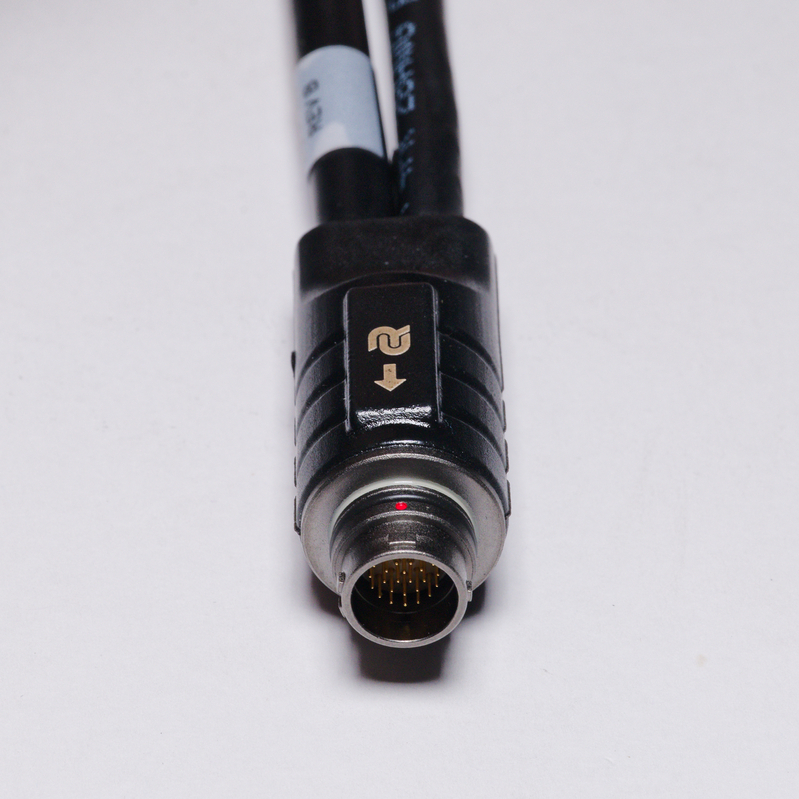

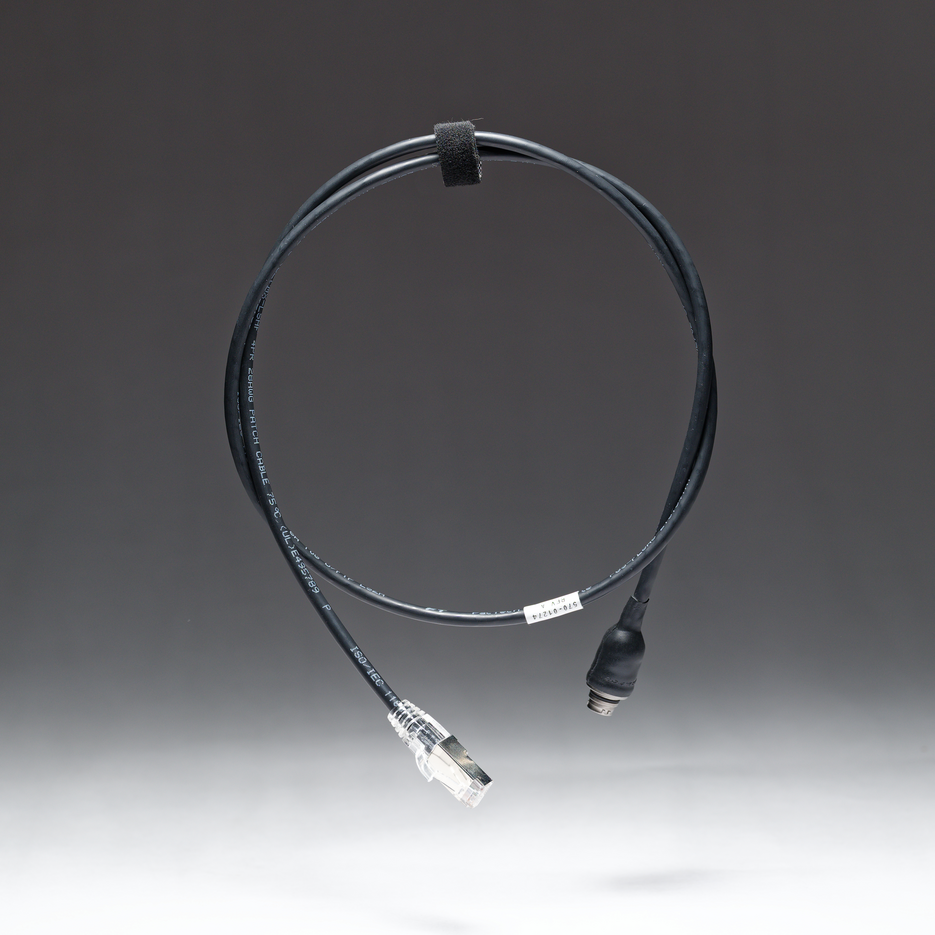

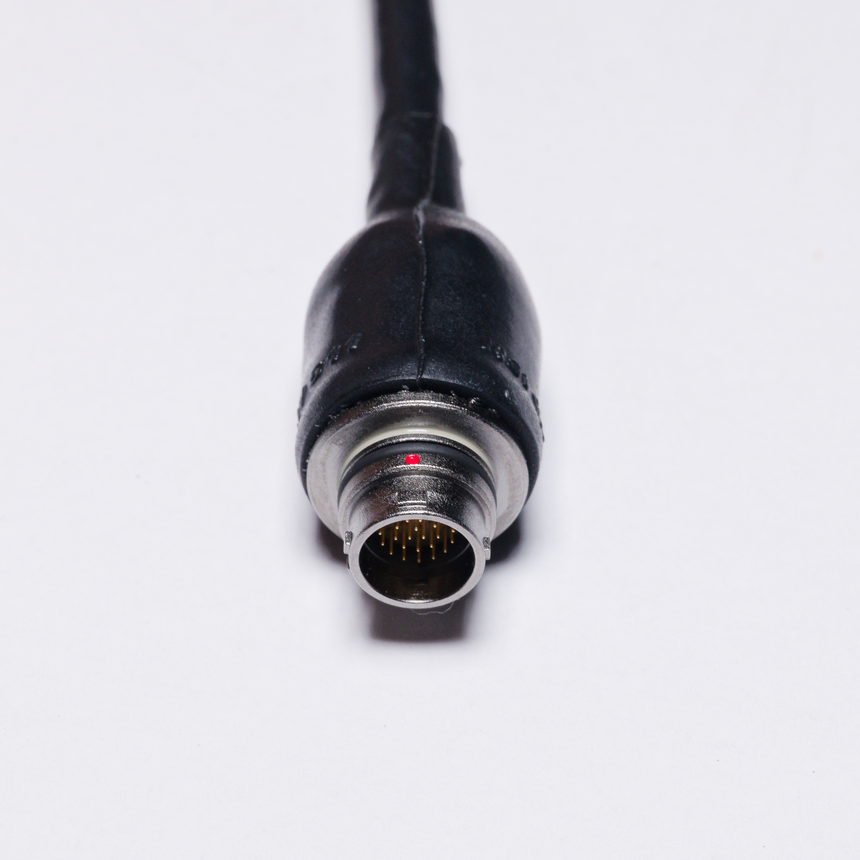

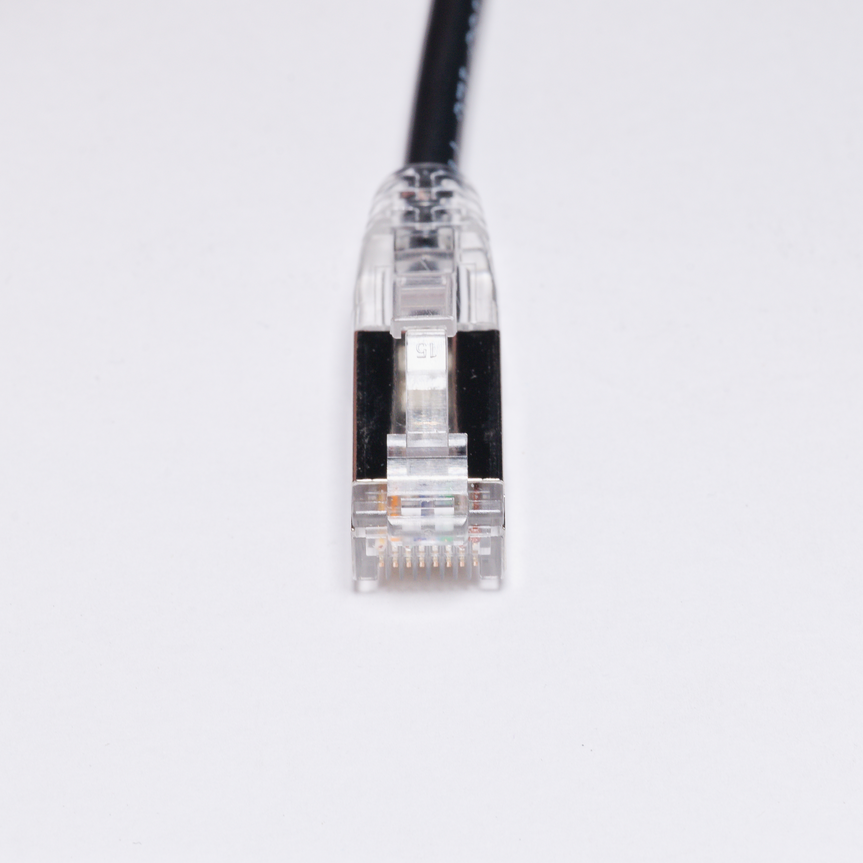

Cable Type: Male ODU PAN+ 17-PIN to Male RJ45.
CRL Part Number: 570-01274

Cable	Cardshark Connection	Host Machine Connection

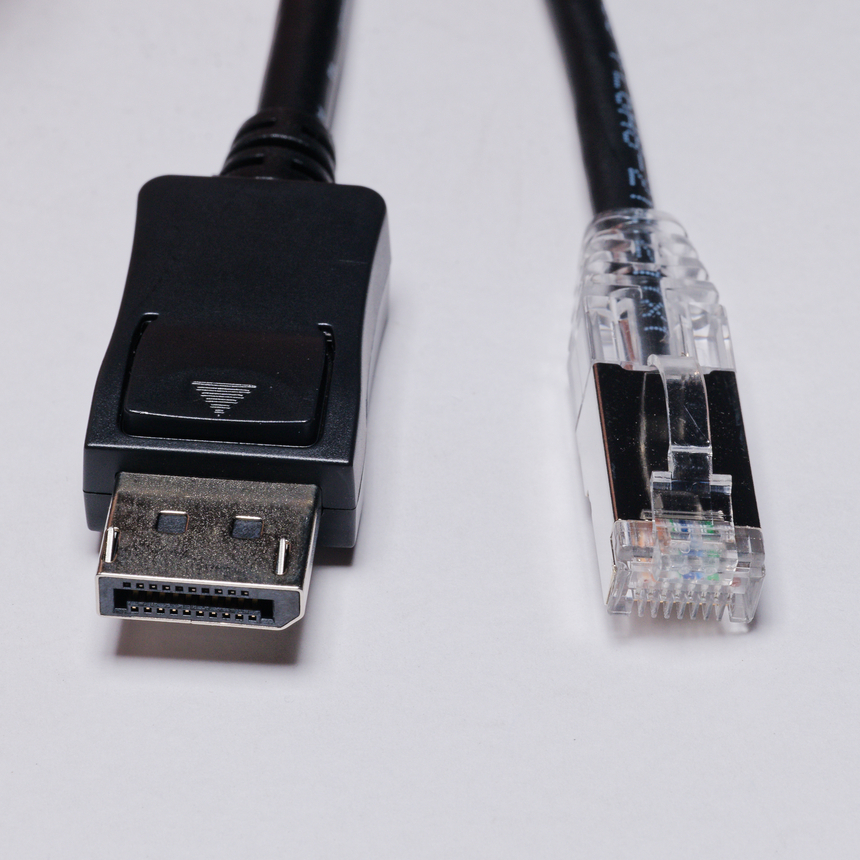

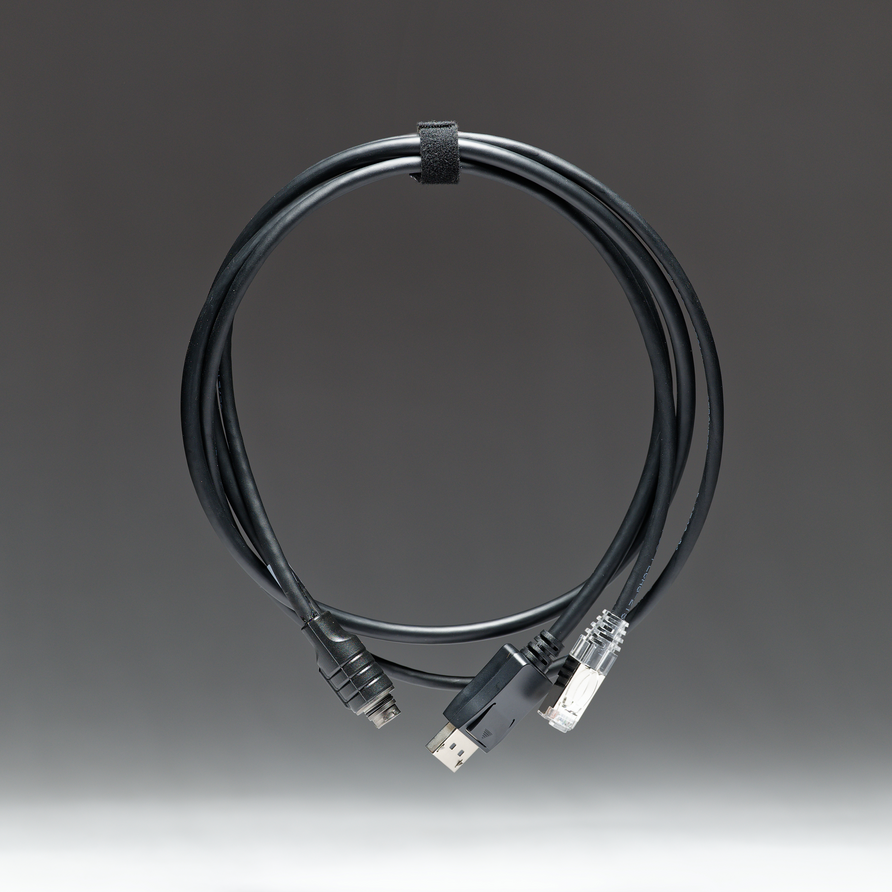

Cable Type: Male ODU PAN+ 17-PIN to Male RJ45 and Male DisplayPort.
CRL Part Number: 570-01309

Cable	Cardshark Connection	Host Machine Connection

HOST/HST USB Compatible Cables

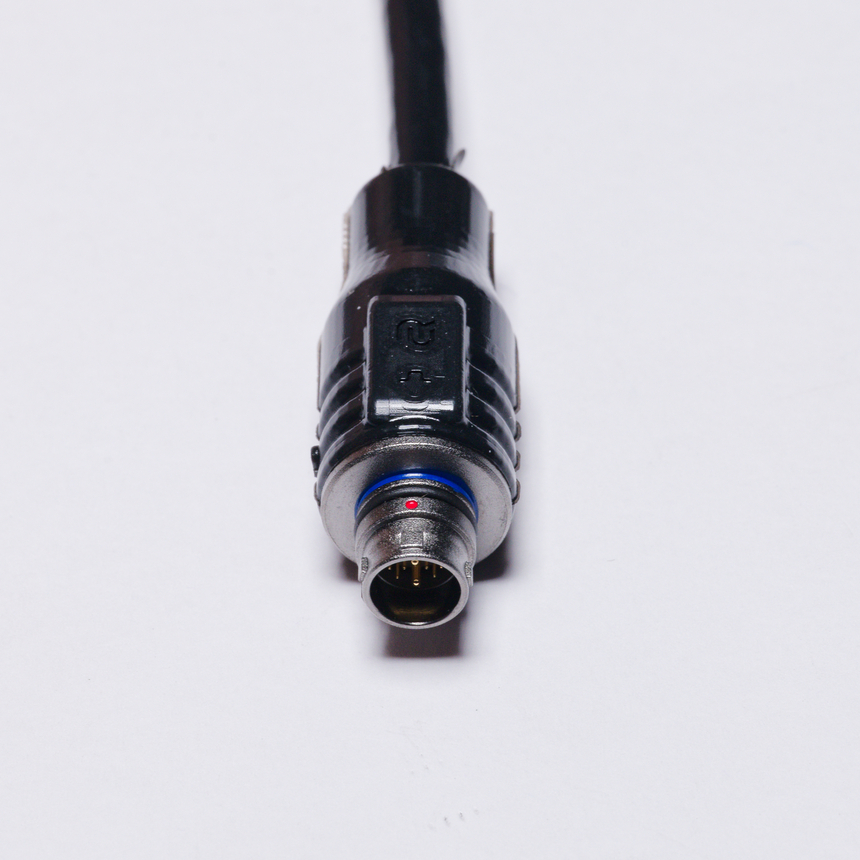

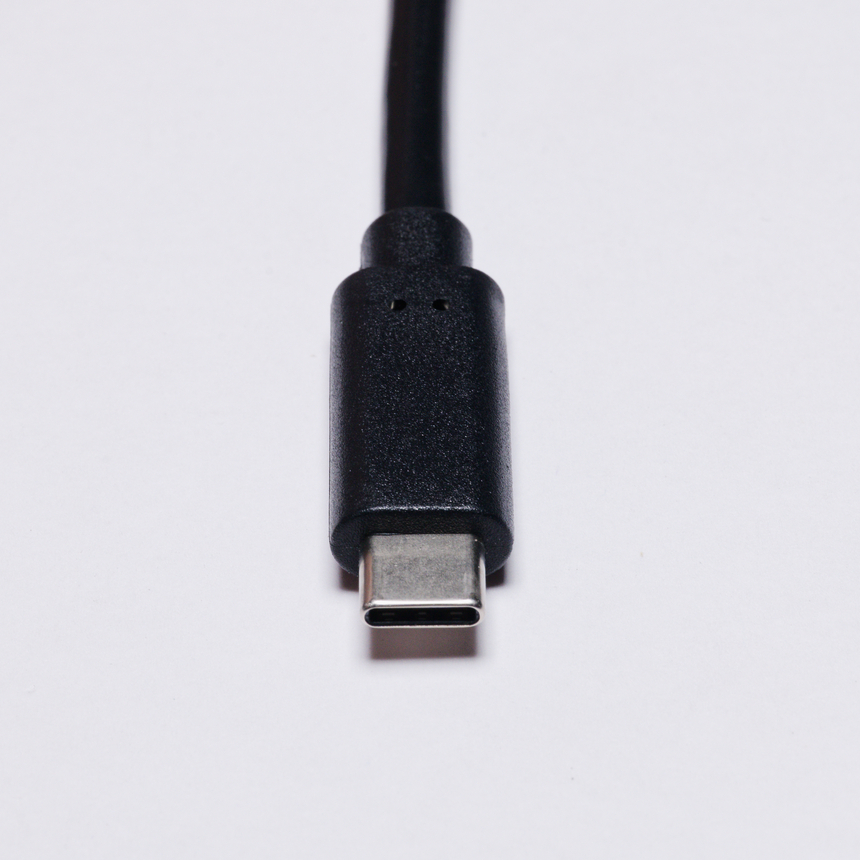

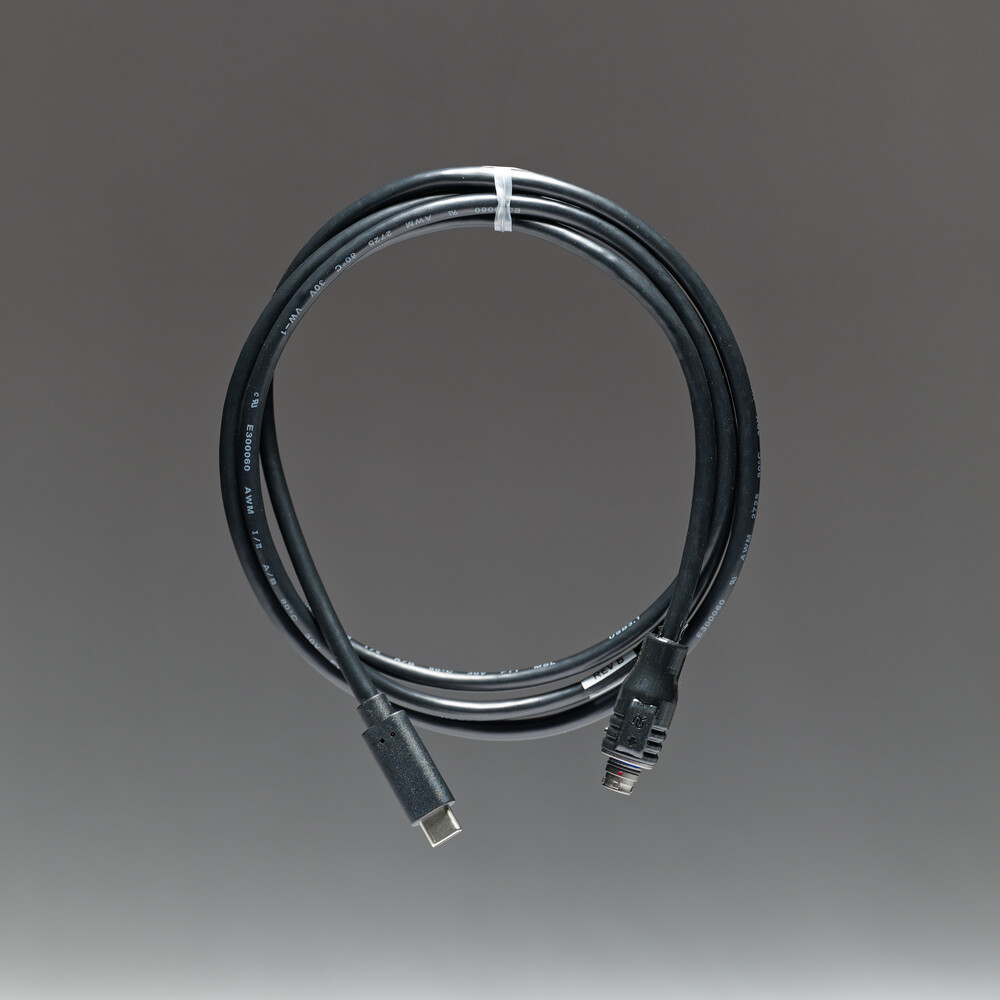

Cable Type: Male ODU PAN 12-PIN to Male USB-C.
CRL Part Number: 570-01308

Cable	Cardshark Connection	Host Machine Connection

Cardshark Connection Examples

PAN+ Ethernet Connection

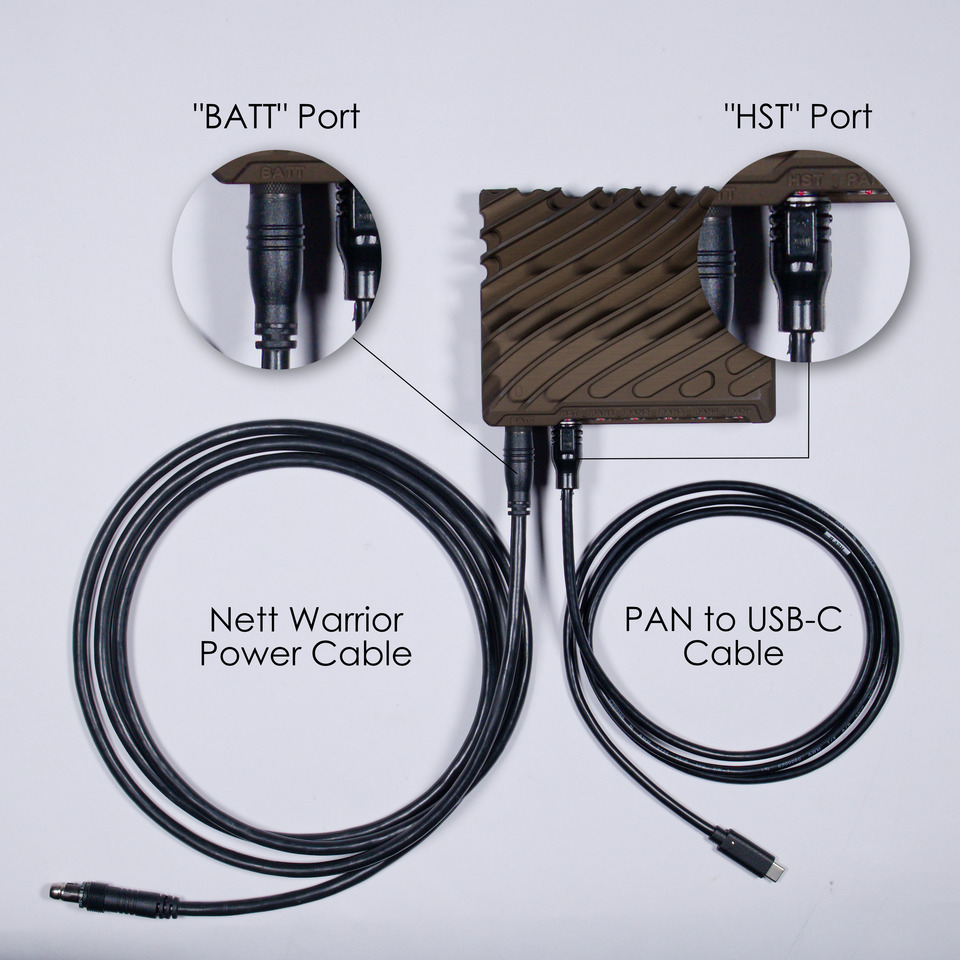

HOST/HST USB Compatible Cables
