Networking Setup (Linux Host)

TABLE OF CONTENTS

• Overview
• Linux Network Profile Configuration
  • PAN+ Ethernet
  • HOST/HST USB
• Testing Your Network Connection

Overview

To create a networking connection to a Cardshark device from a Linux host machine, the host machines networking configuration must be compatible with the default IP address of the Cardshark.

We recommend reviewing the following:

• Networking Connection Options
• Cardshark “Gadget Mode”




The PAN+ port uses a typical Ethernet connection while the HOST/HST port relies on USB Gadget Mode. The default IP addresses for each of these connectivity options differ slightly.

• PAN+ Port IP: 192.168.88.1
• HOST/HST Port IP: 192.168.55.1

Linux Network Profile Configuration

Connection Type	Cardshark Connection	Host Machine Connection

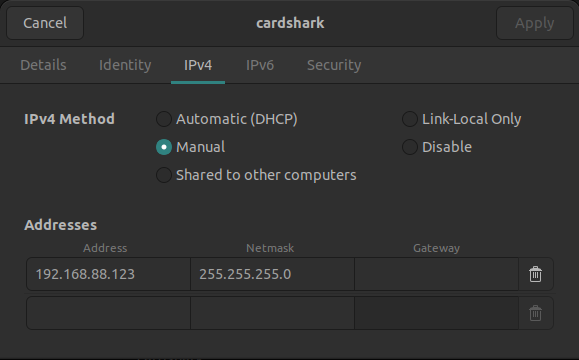

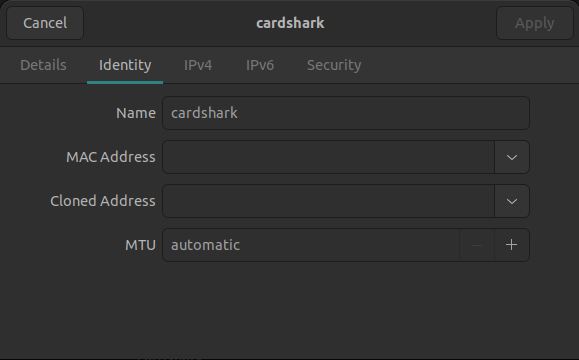

PAN+ Ethernet 17-pin ODU PAN+  to  RJ45 Ethernet

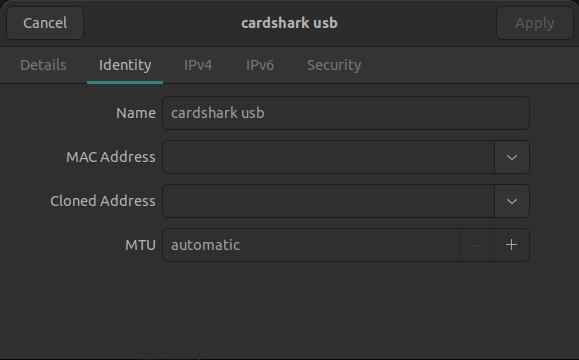

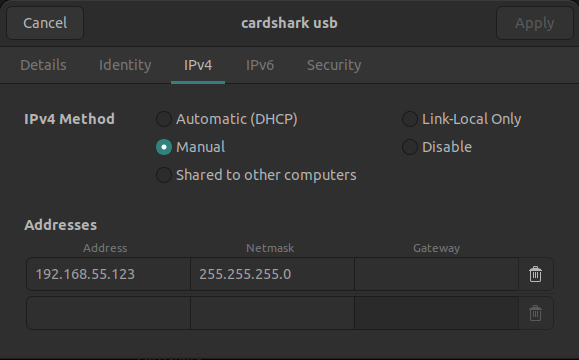

HOST/HST USB 12-pin ODU PAN  to  USB-C

Testing Your Network Connection

You can test you network connection by running one of the following commands replacing ** with the values corresponding to the connectivity method you are using:

Form an SSH connection: ssh cardshark@192.168.**.1
Ping the device: ping 192.168.**.1
