Overview
The Cardshark commissioning tool is used to enter the Nvidia APX programming mode which allows for re-imaging of the device as well as low-level debugging. When re-imaging a Cardshark device, the commissioning tool should be in place before the unit is powered on.
Tool Placement

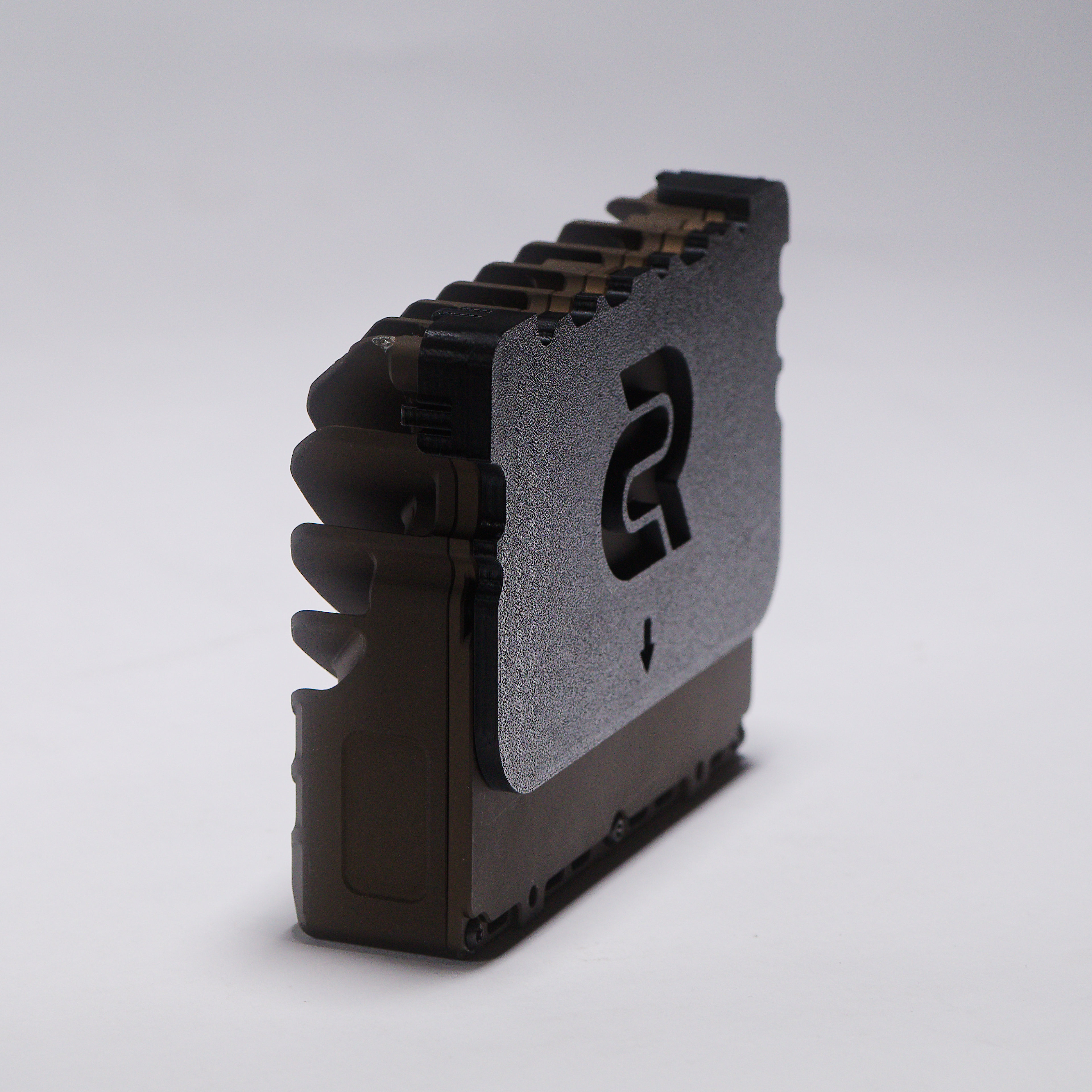

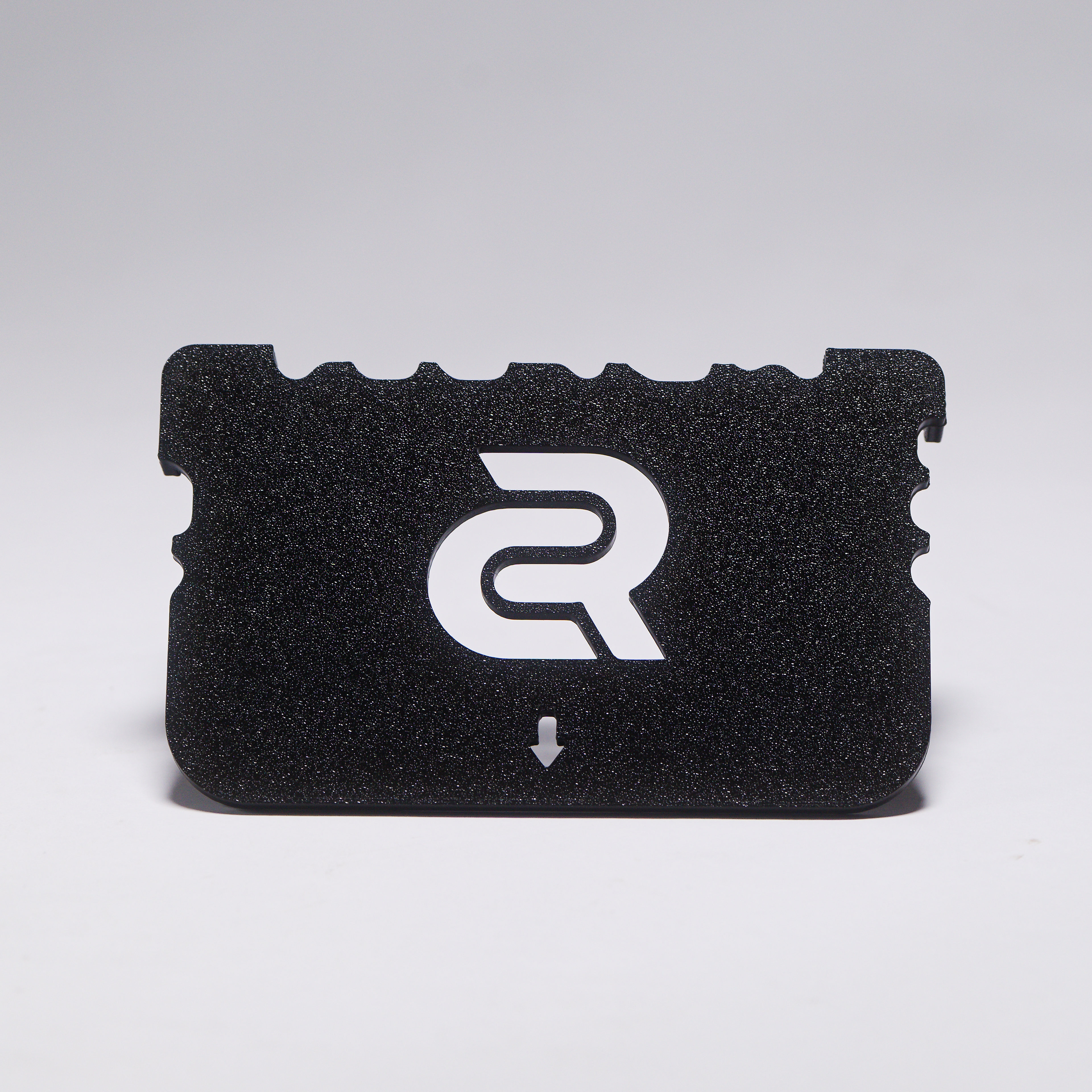

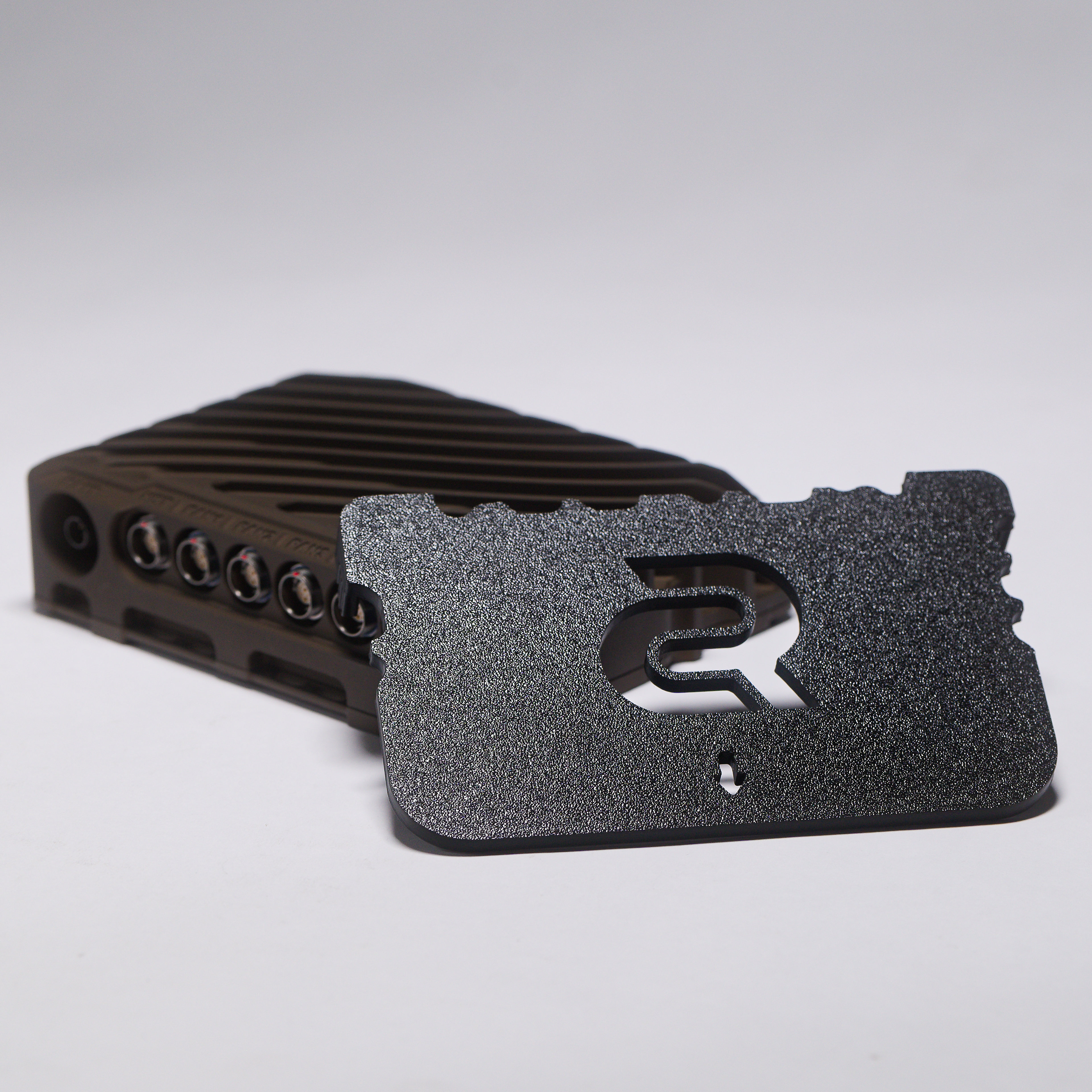

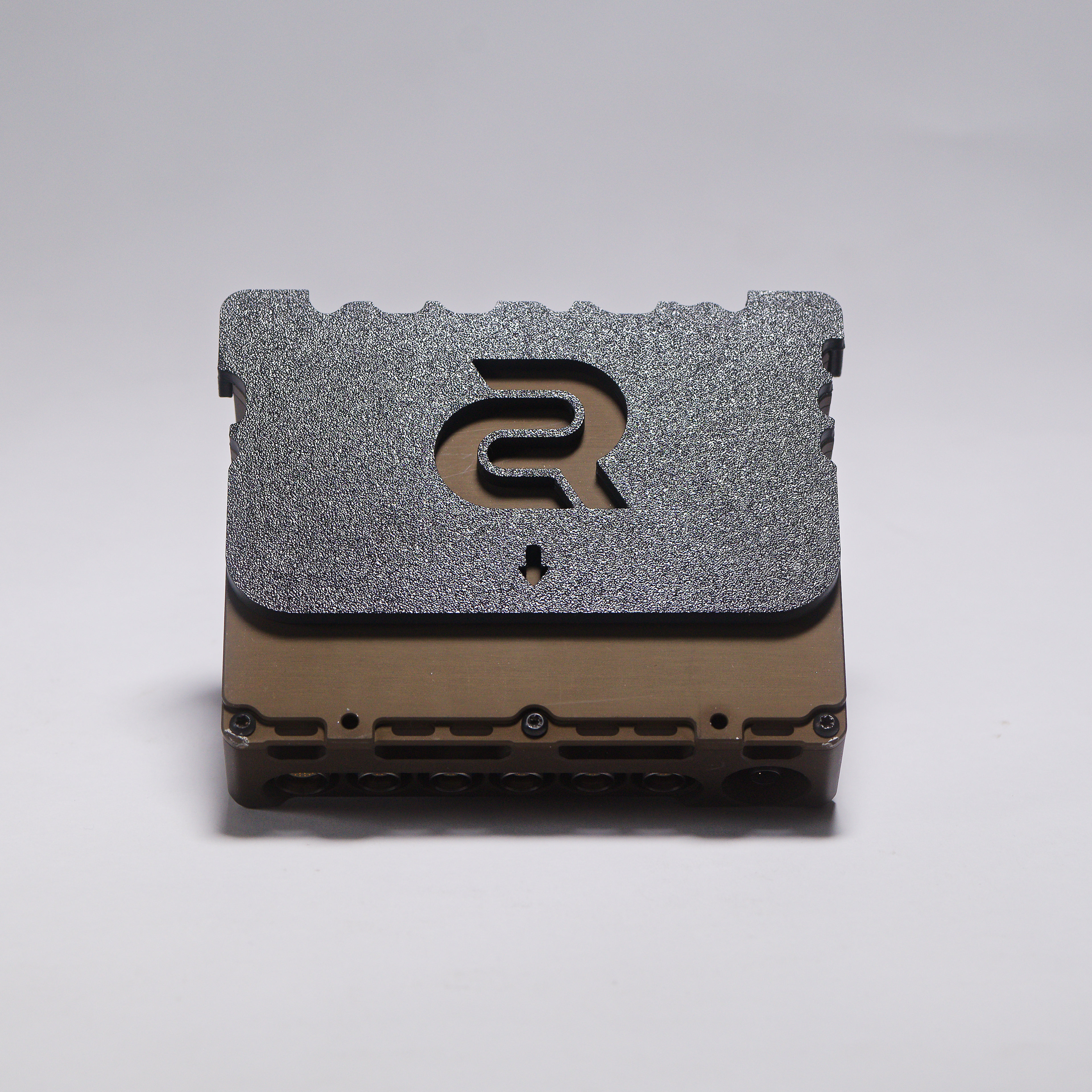

The Cardshark commissioning tool should be placed on the backside of the unit as show in the images below. The tool has been designed to conform to the shape of the Cardshark hardware. There is a cutout of an arrow that should point towards the PAN ports when oriented correctly.
